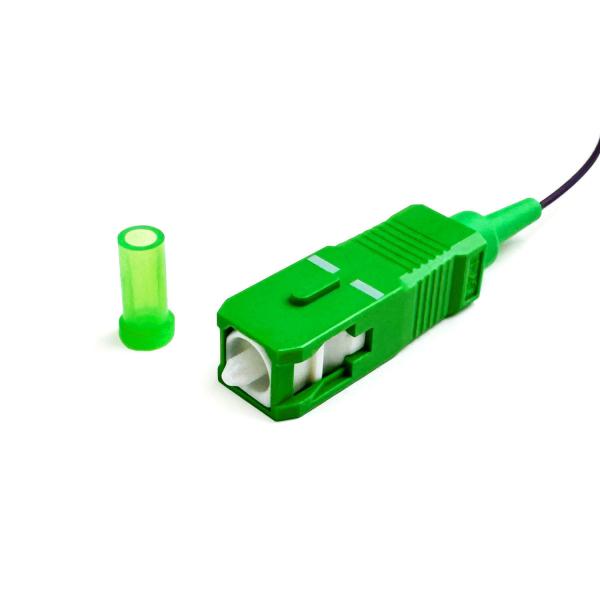

Single Mode 12 Core Fiber Optic Cable 1.5M Fiber Optical Pigtail SC APC G657A1

Name: Single Mode 12 Core Fiber Optic Cable 15M Fiber Optical Pigtail SC APC G657A1
Brand: MingTong
Price: 500 USD

China Single Mode 12 Core Fiber Optic Cable 1.5M Fiber Optical Pigtail SC APC G657A1 wholesale

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-2000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Type : Fiber optic patch cord

Use : FTTH

Warranty Time : 3YEARS

Model Number : pigtails

Application : FTTTH FTTTB FTTTX

Wavelength : 1310/1550nm

Product name : Fiber Optic pigtails

Fiber Type : G652D/G657A1/G657A2

Material : PVC LSZH

Connector Type : SC FC LC ST

Color : Customer Requirement

Name : Indoor Fiber Optic Cable

Contact Now

Single Mode 12 Core Fiber Optic Cable 1.5M Fiber Optical Pigtail SC APC G657A1

The 12 Core Fiber Optic Pigtails are designed for high-speed data transmission in various
applications, including telecommunications, data centers, and local area networks (LAN). Made with high-quality fiber optic materials, these pigtails offer excellent performance and reliability.

Fiber Type	Multimode/Singlemode (specify as needed)
Core Count	12 cores
Connector Type	LC/SC/ST/MTP/MPO (specify type)
Connector Polish Type	UPC/APC (specify)
Fiber Diameter	125 μm (standard) / 200 μm (for multimode)
Buffering Type	Tight-buffered or loose-tube
Cable Diameter	[Specify diameter, e.g., 3 mm]
Length	[Specify length, e.g., 1.0m, 2.0m, custom lengths available]
Jacket Material	LSZH (Low Smoke Zero Halogen) or PVC
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-40°C to +85°C
Insertion Loss	≤ 0.3 dB (for each connection)
Return Loss	≥ 50 dB (UPC), ≥ 60 dB (APC)
